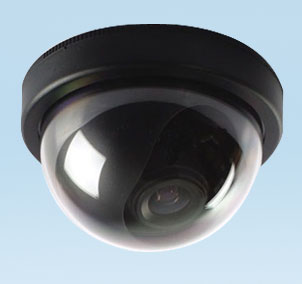

540 TVL Color Dome Camera

This SUPER HIGH resolution color dome camera with SONY image sensor is small in size and perfect for discreet monitoring in high-risk areas where security is a must.

Features:

• Color Dome Camera
• SONY 1/3" Color CCD
• 0.5 Lux Minimum Illumination
• 540 TV Lines HIGH Resolution
• 3.6mm Lens
• BNC Video and 12V DC Jacks On-Board

Specifications:

Image Sensor: 1/3" Sony Color CCD
Picture Elements: (Horizontal x Vertical in mm)
EIA/NTSC: 512 x 492; CCIR/PAL: 512 x 582
Horizontal Sync. Frequency: EIA/NTSC: 15.734KHz; CCIR/PAL: 15.625KHz
Vertical Frequency: EIA/NTSC: 60Hz; CCIR/PAL: 50Hz
Clock Frequency: 28.636Mhz (NTSC)
Horizontal Resolution: 540 Lines
Minimum Illumination: 0.5 Lux
Scanning System: 2:1 Interlace
Signal to Noise Ratio: 48 dB
Electronic Shutter Speed: 1/125.000 / Sec Linear
Lens: 3.6mm / F2.0
Video Output: 1V p-p, 75 ohms
Gamma: 0.45
Power Supply: 12V DC
Power Consumption: 200mA
Weight: 140g
Dimensions: 100 x 86mm
Storage Temperature: -30°C to +60°C
Operating Temperature: -10°C to +45°C
