Super Mini PTZ Cameras

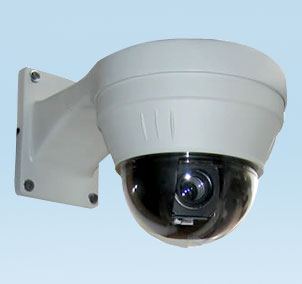

Super Mini PTZ Camera

This Mini Pan Tilt Zoom cam comes with the power supply, and both wall and ceiling mount camera brackets. All you need is a PTZ controller or DVR with PTZ control capabilities, and video cable. It is not only weatherproof, but vandalproof as well; so you can rest assured it will put up a fight before anyone will be able to take it off the wall. A very tough mini PTZ camera indeed. Even with its small size, it has all the capabilities of its larger speed dome PTZ counterparts. It can pan full 360 degrees continuously, and has a 0-90 degree tilt with auto flip.



Features:

• 5" Mini PTZ Camera
• Built -in Onscreen display menu for easy setup
• 570 TVL Resolution
• Day & Night Camera that switches to black and
  white mode in low light
• Weatherproof to withstand any weather
• Vandalproof to resist tampering
• 100X Zoom (10x optical, 10x digital zoom)
• 128 presets (can be labeled with editable title)
• 1 cruise tour
• 4 pattern tours
• 360 degree Pan, 90 degree Tilt
• Supports RS-485 and multiple PTZ protocols
• Ceiling and Wall Mount Included
• 12V DC Powered



Specifications:

Sensor: 1/4" Sony Super HAD CCD
Effective Pixels: 768(H) x 494(V)
Resolution: 540 Color / 570 B/W
Min. Illumination: 0.02 Lux
S/N Ratio: More than 48dB
Focus & Iris: Automatic/ Manual
Lens: 10x Optical Zoom, 10x Digital Zoom
Decoder: Built-In
Motor: Stepping Motor
Synchronization: Internal/ External
Preset: 128 Presets, Can be Labeled with Editable-title
Pan Range: 360° Continuously
Tilt Range: 90°
Tilt Speed: 0.5-90°/ Second
Pan Speed: 0.5-160°/ Second
Communication: RS-485
Protocol: Pelco-P, Pelco-D, etc
Operating Temp.: -10° to 60°C
Humidity: 0-95%
Dimension: 5.23 x 8.74 inches (D x H)
Net Weight: 3.4lbs

DELIVERY
PosOne will deliver only in UAE addresses. Delivery will be within 2-3 working days of receiving your order, subject to availability.
We charge delivery charge for orders outside UAE.
Orders cannot be delivered to PO boxes.
No delivery on Fridays. Please contact us via e-mail for more details.
